Operating devices DALI / Switch&Dim

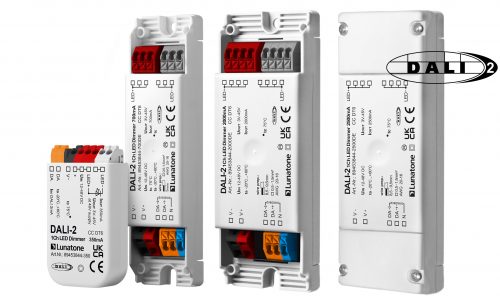

DALI LED-driver – Input voltage 230VAC, output with secure isolation between mains and DALI. Output signal can be controlled via DALI or SwitchDim2.
Versions for constant current (250mA/350mA … 1050mA) and constant voltage (24V, 1A max.) are available.

DALI LED-driver for Tunable White LED – Input voltage 230VAC, output with secure isolation between mains and DALI, independent control of light level and colour temperature (DT8). As alternative to the DT8 control the device also supports the operating modes Balance&Dim, Dim2Warm and SwitchDim2 (control via 2 switch inputs without DALI). Variants for constant current 350mA / 700mA and constant voltage 24V, 1A max are available.

DALI LED-driver (CV or CC) with independent channels. Each channel has its own DALI address (DT6). As alternative to the DT6 control the device also supports several operating modes:
2 Channel device: Balance&Dim, Dim2Warm (suitable for Tunable White luminaires) and SwitchDim2 (control via 2 switch inputs without DALI).
3/4 Channel device: Colour&Dim (suitable for RGB luminaires) and SwitchDim2 (control via 2 switch inputs without DALI).

DALI LED-driver (CV or CC) with 2 channels to control Tunable White luminaires via one DALI address (DT8).
 As alternative to the DT8 control the device also supports the operating modes Balance&Dim, Dim2Warm and SwitchDim2 (control via 2 switch inputs without DALI).

DALI LED-driver (CV or CC) with 3/4 channels to control RGB or RGBW luminaires via one DALI address (DT8). As alternative to the DT8 control the device also supports the operating modes Colour&Dim and SwitchDim2 (control via 2 switch inputs without DALI).
