1Ch LED Booster/Dimmer

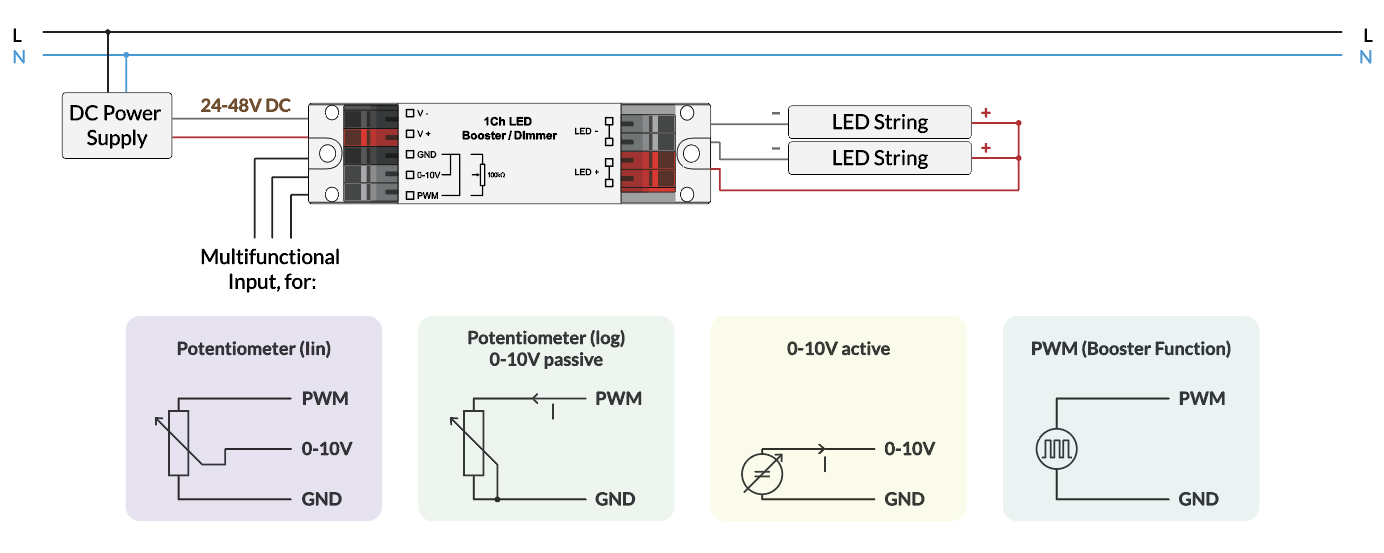

LED driver (CV) with one channel, can be operated as PWMBooster or Dimmer. The device operates as PWM-Booster, if PWM-signals are applied to the input (50Hz-1kHz). If operated with 100kΩ potentiometer or 0-10V control devices (active and passive), the device functions as Dimmer.

1Ch LED Booster/Dimmer

LED driver (CV) with one channel, can be operated as PWMBooster or Dimmer. The device operates as PWM-Booster, if PWM-signals are applied to the input (50Hz-1kHz). If operated with 100kΩ potentiometer or 0-10V control devices (active and passive), the device functions as Dimmer.

Product types

Art. Nr.: 86459838

1Ch LED Booster/Dimmer – open datasheet

Add to request

Specifications

Technical Data
ambient temperature
-20°C to +60°C
protection class
IP20
connection wir cross section
max. 2.5mm²
mounting
remote ceiling
Function
device type
DALI LED driver
Electrical Data
supply
12V DC - 48V DC
control input
PWM (50Hz-1KHz), 100kOhm Potentiometer, 0-10V active/passive
max. input current
16A
Dimensions
length
120mm
width
30mm
height
22mm
colour
grey

Downloads & Links

Downloads

Datasheet - 1Ch LED Booster/Dimmer (PDF - 1,300.97 kB)
CE – 1Ch LED Booster/Dimmer (PDF - 402.60 kB)
