24V Power Supply 60mA

  •  24V DC Power Supply
  • maximum output current 60mA
  • Installation box module

24V Power Supply 60mA

  •  24V DC Power Supply
  • maximum output current 60mA
  • Installation box module

Product types

Art. Nr.: 24166012-24

PS 24V, 60mA Power Supply – open Datasheet

Add to request

Specifications

Technical Data
ambient temperature
-20°C to +55°C
protection degree
IP20
connecting wire cross section
0.5 ... 1.5 mm²
mounting
installation box, back box
Function
device type
24V DC Power Supply
Electrical Data
input voltage
230VAC
maximum input current
15mA
output voltage
24V DC
maximum output current
60mA
Dimensions
dimensions (L x W x H)
60 x 33 x 15 mm
colour
grey

Downloads & Links

Downloads

Datasheet - D0065 24V Power Supply (PDF - 391.44 kB)
CE – 24V Power Supply (Art.Nr. 24166012-__) (PDF - 125.10 kB)

Power supply for the following products

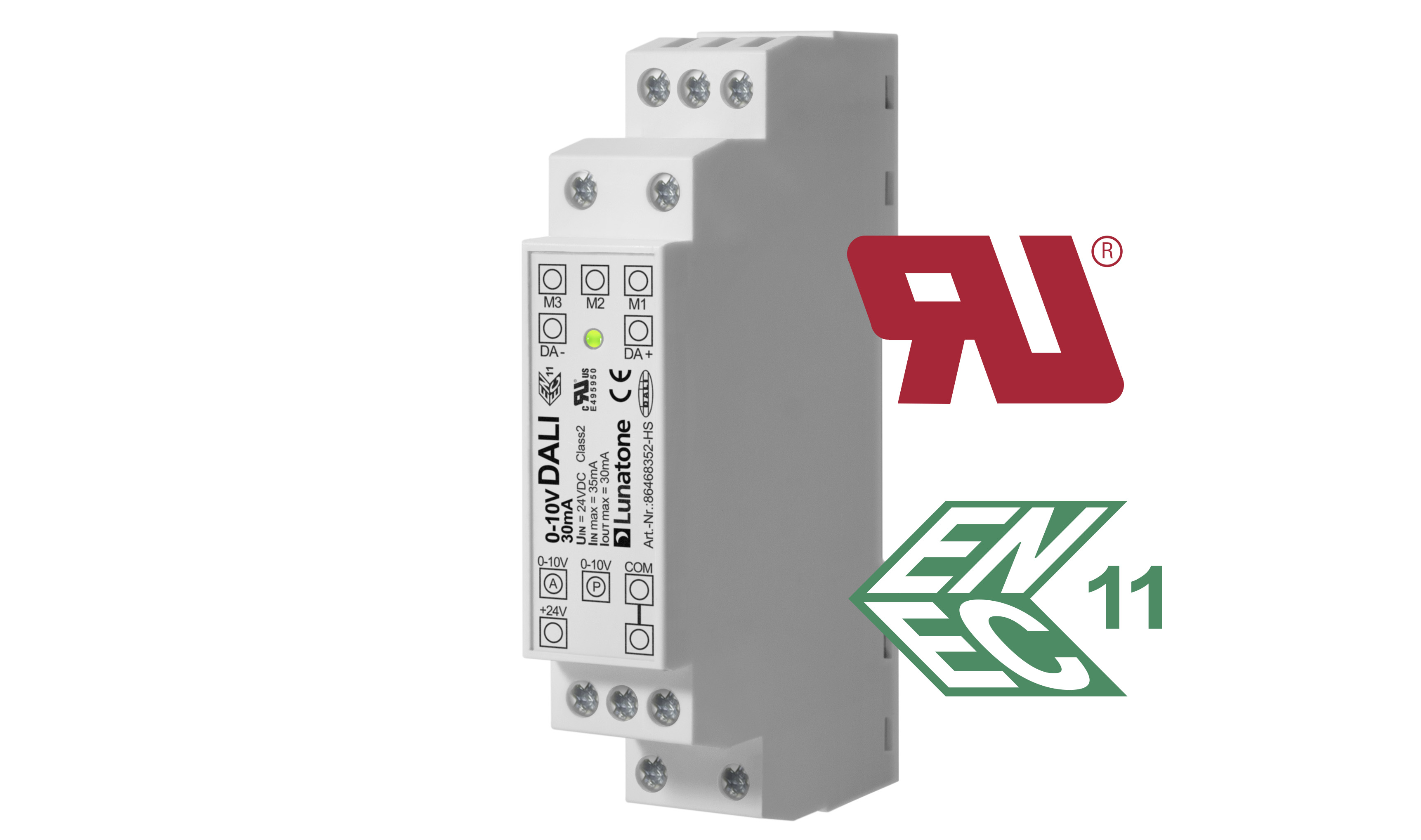

0-10V DALI 30mA
converter 0-10V to DALI - 30mA Power Supply

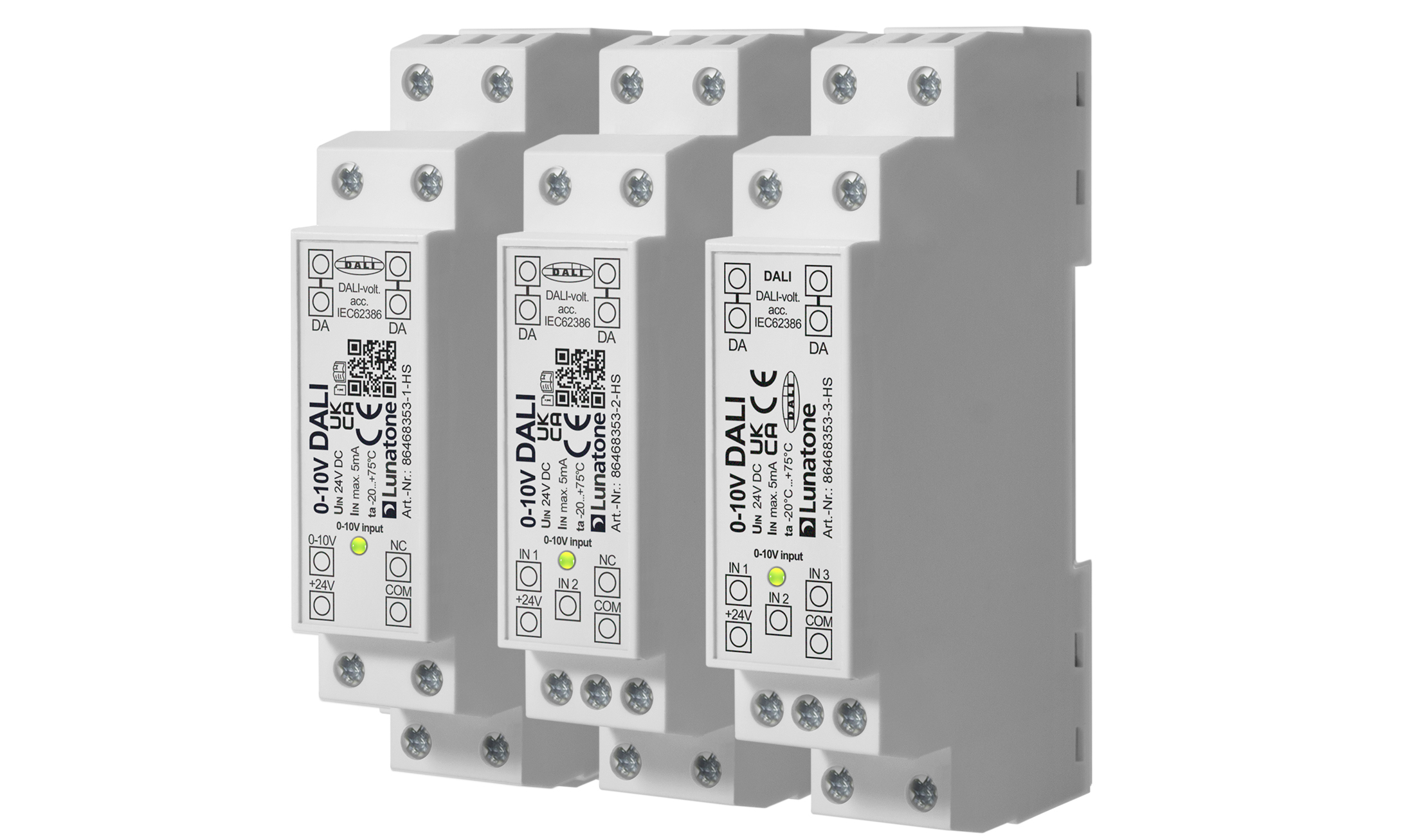

0-10V DALI Converter
converter 0-10V to DALI - up to 3 inputs
