DALI 0-10V LE

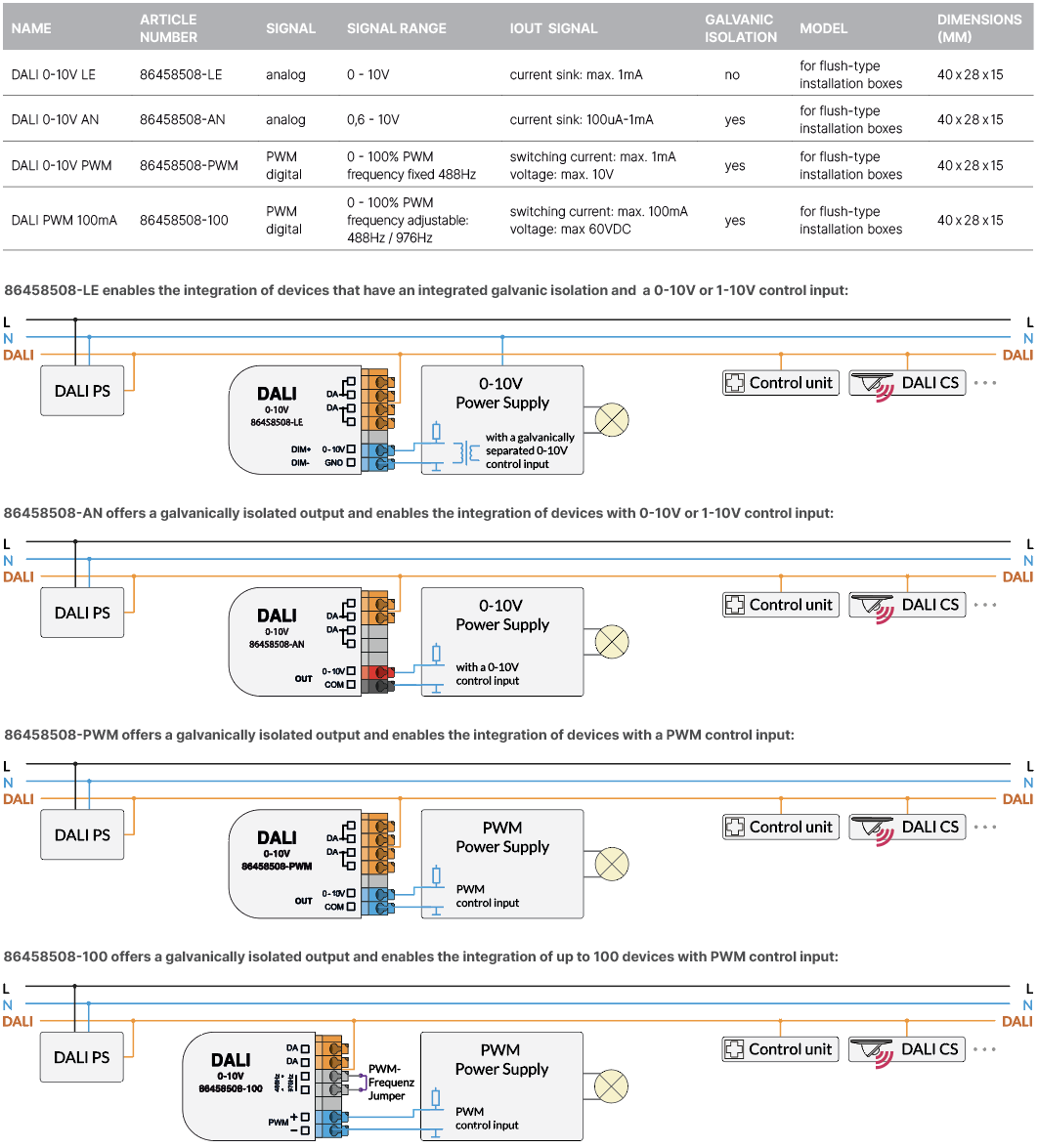

This interface converts DALI signals to an analogue 0-10V signal, thus enables the integration of operating devices with an electrically isolated 1-10V control input into a DALI system. DALI Device Type 5 (IEC62386-206) compatible: linear or logarithmic dimming curve, 0-10V or 1-10V output range.

DALI 0-10V LE

This interface converts DALI signals to an analogue 0-10V signal, thus enables the integration of operating devices with an electrically isolated 1-10V control input into a DALI system. DALI Device Type 5 (IEC62386-206) compatible: linear or logarithmic dimming curve, 0-10V or 1-10V output range.

Product types

Art. Nr.: 86458508-LE

DALI 0-10V LE – open datasheet

Add to request

Specifications

Technical Data
ambient temperature
-20°C to +75°C
protection class
IP20
connection wire cross section
max. 1.5mm²
mounting
back box
Function
device type
signal converter
Electrical Data
supply
from DALI bus
input
DALI
output
0-10V (0%-100%) analog voltage 1mA max. (current sink)
current consumption
4,5mA (DALI)
Dimensions
length
39.7mm
width
28mm
height
14mm
colour
grey
weight
ca. 10g
