DALI-2 CS Integration

for Integration in systems with central control units

Compact sensor module with motion detection (PIR) and light intensity measurement for DALI-2 systems. The module gathers measurements for the building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.).
The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Integration can be set accordingly in the DALI Cockpit Software.
Multiple sensors within one group will synchronise automatically.
The device is powered directly by the DALI bus.

DALI-2 CS is available in three different housings: for direct mounting on cavity walls or installation boxes (standard), for suspended ceilings (with spring), or for surface mounting (with backbox). The alignment of the sensor head is very simple using the turning and swivel head. Available housing colours are pure white RAL 9010, traffic white RAL 9016 (-W16) or black (-B).
Factory setting: On delivery all instance events are active. Usage with a DALI-2 CS is possible without further configuration by assigning the devices to the DALI-2 CS Master.

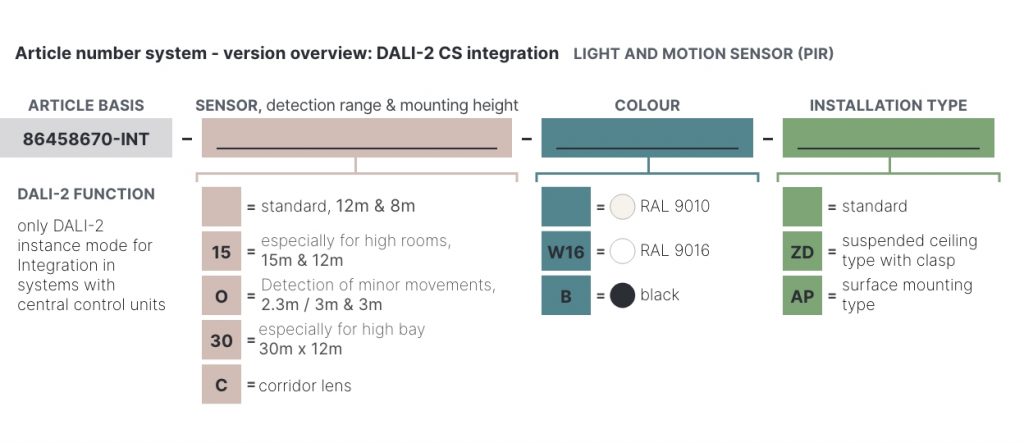

Article number system DALI-2 CS INT
DALI-2 Web-01

DALI-2 CS Integration

for Integration in systems with central control units

Compact sensor module with motion detection (PIR) and light intensity measurement for DALI-2 systems. The module gathers measurements for the building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.).
The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Integration can be set accordingly in the DALI Cockpit Software.
Multiple sensors within one group will synchronise automatically.
The device is powered directly by the DALI bus.

DALI-2 CS is available in three different housings: for direct mounting on cavity walls or installation boxes (standard), for suspended ceilings (with spring), or for surface mounting (with backbox). The alignment of the sensor head is very simple using the turning and swivel head. Available housing colours are pure white RAL 9010, traffic white RAL 9016 (-W16) or black (-B).
Factory setting: On delivery all instance events are active. Usage with a DALI-2 CS is possible without further configuration by assigning the devices to the DALI-2 CS Master.



Article number system DALI-2 CS INT
DALI-2 Web-01

Product types

Art. Nr.: 86458670-INT

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, RAL9010, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-AP

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, RAL9010, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-ZD

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, RAL9010, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-W16

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, RAL9016, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-W16-AP

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, RAL9016, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-W16-ZD

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, RAL9016, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-B

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, Black, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-B-AP

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, Black, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-B-ZD

DALI-2 motion sensor 12m, constant light control, for Integration with central control units, Black, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-O

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, RAL9010, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-O-AP

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, RAL9010, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-O-ZD

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, RAL9010, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-O-W16

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, RAL9016, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-O-W16-AP

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, RAL9016, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-O-W16-ZD

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, RAL9016, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-O-B

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, Black, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-O-B-AP

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, Black, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-O-B-ZD

DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, Black, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-15

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, RAL9010, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-15-AP

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, RAL9010, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-15-ZD

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, RAL9010, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-15-W16

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, RAL9016, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-15-W16-AP

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, RAL9016, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-15-W16-ZD

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, RAL9016, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-15-B

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, Black, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-15-B-AP

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, Black, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-15-B-ZD

DALI-2 motion sensor 15m / 12m mounting hight, constant light control, for Integration with central control units, Black, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-30

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9010, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-AP

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9010, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-ZD

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9010, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-W16

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9016, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-W16-AP

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9016, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-W16-ZD

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9016, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-B

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, Black, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-B-AP

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, Black, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-B-ZD

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, Black, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9010, standard mounting holes, IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-AP-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9010, for surface mounting (with backbox), IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-ZD-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9010, for suspended ceilings (with spring), IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-W16-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9016, standard mounting holes, IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-W16-AP-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9016, for surface mounting (with backbox), IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-W16-ZD-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, RAL9016, for suspended ceilings (with spring), IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-B-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, Black, standard mounting holes, IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-B-AP-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, Black, for surface mounting (with backbox), IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-30-B-ZD-IP54

DALI-2 motion sensor – 10x30m at installation height 15m, constant light control, for Integration with central control units, Black, for suspended ceilings (with spring), IP54 – open datasheet

Add to request
Art. Nr.: 86458670-INT-C

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, RAL9010, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-C-AP

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, RAL9010, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-C-ZD

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, RAL9010, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-C-W16

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, RAL9016, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-C-W16-AP

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, RAL9016, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-C-W16-ZD

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, RAL9016, for suspended ceilings (with spring) – open datasheet

Add to request
Art. Nr.: 86458670-INT-C-B

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, Black, standard mounting holes – open datasheet

Add to request
Art. Nr.: 86458670-INT-C-B-AP

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, Black, for surface mounting (with backbox) – open datasheet

Add to request
Art. Nr.: 86458670-INT-C-B-ZD

DALI-2 motion sensor for corridors, wide angle, up to 5m, constant light control, for Integration with central control units, Black, for suspended ceilings (with spring) – open datasheet

Add to request

Specifications

Technical Data
ambient temperature 86458670-INT
-20°C to +60°C
ambient temperature 86458670-INT-15
-20°C bis +55°C
ambient temperature 86458670-INT-O, 86458670-INT-30, 86458670-INT-C
-20°C bis +60°C
protection class
IP20
connection wire cross section
max. 1.5mm²
mounting Standard version (no Art.Nr. addition)
with mounting holes
mounting Art.Nr. addition: "-ZD"
for suspended ceilings (with spring)
mounting Art.Nr. addition: "-AP"
or surface mounting (with backbox)
Function
device type
sensor
motion sensor
yes
constant lighting control
yes
multi-master capable
yes
configurable via DALI Cockpit
yes
Electrical Data
supply
from DALI bus
input/output
DALI
current consumption
3.5mA
motion sensor 86458670-INT
principle: PIR (passive infrared), distance: max. 12m/92 zones, horizontal area + -51° vertical + -46°, temperature difference target / environment:> 4 ° C
motion sensor 86458670-INT-15
principle: PIR (passive infrared), distance: max. 15m/128 zones, horizontal area + -34,5° vertical + -34,5°, temperature difference target / environment:> 4 ° C
motion sensor 86458670-INT-O
principle: PIR (passive infrared), distance: max. 3m/48 zones, horizontal area + -44/90° vertical + -44/90°, temperature difference target / environment:> 4 ° C
motion sensor 86458670-INT-30
principle: PIR (passive infrared), distance: max.30m/ 188 zones, horizontal area +-43° vertical +-22°, temperature difference target / environment:> 2-4°C
motion sensor 86458670-INT-C
principle: PIR (passive infrared), distance: max.5m/ 88+16 zones, horizontal area +-75° vertical +10/-25°, temperature difference target / environment: >4°C
light sensor
range: 0-2047lux (11bit), resolution: 1lux __ Event:0-2047lux(10bit), resolution: 2lux
Dimensions
measurements Standard version
98x98x18(max.42)mm
measurements Art.Nr. addition: "-ZD"
98x98x18(max.42)mm +98x98x32mm part with spring for suspended ceilings
measurements Art.Nr. addition: "-AP"
98x98x18(max.42)mm + 98x98x32mm mountingbox
colour Standard version (no Art.Nr. addition)
RAL9010
colour Art.Nr. addition: "-W16"
RAL9016
colour Art.Nr. addition: "-B"
Black

Part numbering system

Downloads & Links

Links

DALI-2 CS - DALI-2 certification

Downloads

Datasheet - D0123 DALI-2 CS Integration (PDF - 1,810.42 kB)
CE – DALI-2 CS Integration (86458670-INT-__) (PDF - 76.63 kB)
UKCA – DALI-2 CS Integration (86458670-__) (PDF - 125.04 kB)
