DALI-2 RTC Sequencer
Sequencer with real-time clock and timer function
The DALI-2 RTC Sequencer enables automatic, time-based execution of command sequences.
In the DALI Cockpit menu of the DALI-2 RTC Sequencer, up to 32 entries can be created, each consisting of command(s), an effective range and either an execution time or a manual activation.
The command can either be a single DALI command or a combination of multiple DALI commands (macros/ sequences). For the target area, the options are: broadcast, groups, and individual addresses. Time settings can include specific times, dates, weekdays, days of the month, etc. and also periodic repetitions.
Additionally, entries can be started and stopped externally via scene commands or manually via the push button inputs.

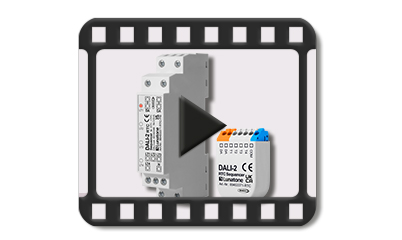

2 housing types are available, either for DIN Rail mounting or for installation behind a switch in a flush-type installation box.

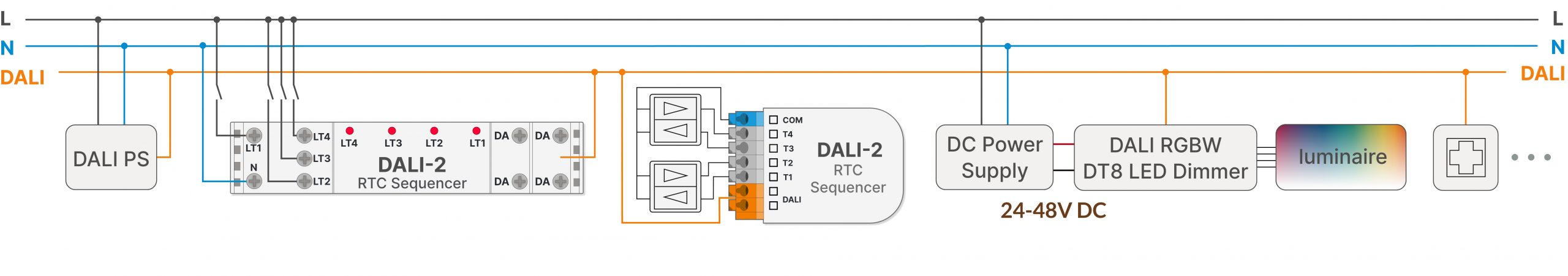

The DIN Rail type provides 4 switching inputs for mains voltage to start the sequences, and 4 LEDs to indicate active sequences.
The version for installation behind a switch provides 4 potential free inputs to start the sequences.
Easy configuration via DALI-Cockpit PC Software.
DALI-2 RTC Sequencer
Sequencer with real-time clock and timer function
The DALI-2 RTC Sequencer enables automatic, time-based execution of command sequences.
In the DALI Cockpit menu of the DALI-2 RTC Sequencer, up to 32 entries can be created, each consisting of command(s), an effective range and either an execution time or a manual activation.
The command can either be a single DALI command or a combination of multiple DALI commands (macros/ sequences). For the target area, the options are: broadcast, groups, and individual addresses. Time settings can include specific times, dates, weekdays, days of the month, etc. and also periodic repetitions.
Additionally, entries can be started and stopped externally via scene commands or manually via the push button inputs.
2 housing types are available, either for DIN Rail mounting or for installation behind a switch in a flush-type installation box.
The DIN Rail type provides 4 switching inputs for mains voltage to start the sequences, and 4 LEDs to indicate active sequences.
The version for installation behind a switch provides 4 potential free inputs to start the sequences.
Easy configuration via DALI-Cockpit PC Software.
