DALI-2 Touchpanel 03

The DALI-2 Touchpanel 03 is a multifunctional control unit with up to 16 freely configurable buttons. The number of keys and the assigned DALI commands can be set in the DALI Cockpit Software. The device can be adapted to a wide variety of applications. A large number of layouts are available and custom layouts can be realised upon request.

Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences, as well as user defined command lists are supported.

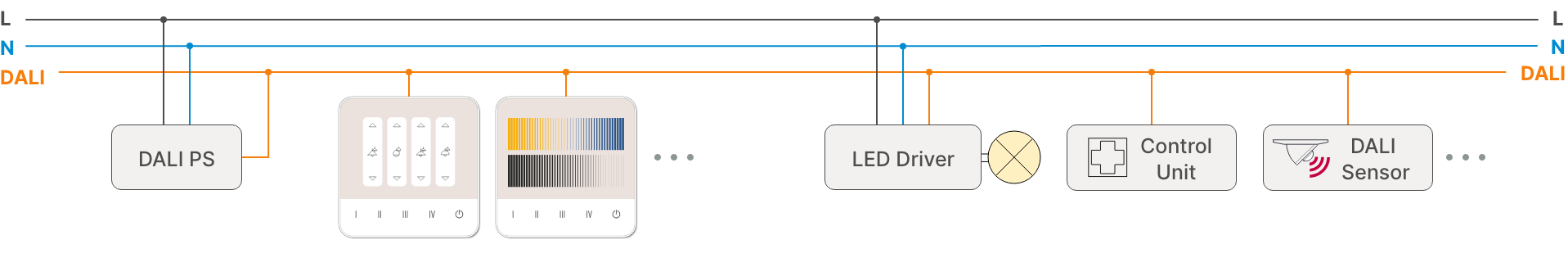

DALI-2 Web-01

Übersicht Bedienoberflächen

-G01A

Art. Nr.: 24035410-G01A

Function: 1 brightness slider, arrow keys for fine adjustment
Menu bar: 4 scenes, on/off

-G02A

Art. Nr.: 24035410-G02A

Function: 4 groups on/off and dimmable with respective arrow keys
Menu bar: 4 scenes, on/off

-G03A

Art. Nr.: 24035410-G03A

Function:
1 brightness slider,
1 tunable white slider
Menu bar: 4 scenes, on/off

-G04A

Art. Nr.: 24035410-G04A

Function:
4 groups on/off,
1 brightness slider,
1 tunable white slider
Menu bar: 4 scenes, on/off

-G05A

Art. Nr.: 24035410-G05A

Function: 4 groups on/off and dimmable with respective arrow keys, 1 tunable-white slider
Menu bar: 4 scenes, on/off

-G06A

Art. Nr.: 24035410-G06A

Function:
1 brightness slider,
1 RGB colour slider
Menu bar:
4 scenes, on/off

-G07A

Art. Nr.: 24035410-G07A

Function:
4 groups on/off,
1 brightness slider,
1 RGB colour slider
Menu bar: 4 scenes, on/off

-G08A

Art. Nr.: 24035410-G08A

Function: fan, blinds, 2 groups dimmed separately with arrow keys, 1 tunable-white slider
Menu bar: 4 scenes, on/off

-G09A

Art. Nr.: 24035410-G06A

Function:
1 brightness slider,
1 RGBW colour+white slider
Menu bar: 4 scenes, on/off

DALI-2 Touchpanel 03

The DALI-2 Touchpanel 03 is a multifunctional control unit with up to 16 freely configurable buttons. The number of keys and the assigned DALI commands can be set in the DALI Cockpit Software. The device can be adapted to a wide variety of applications. A large number of layouts are available and custom layouts can be realised upon request.

Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences, as well as user defined command lists are supported.

DALI-2 Web-01

Übersicht Bedienoberflächen

-G01A

Art. Nr.: 24035410-G01A

Function: 1 brightness slider, arrow keys for fine adjustment
Menu bar: 4 scenes, on/off

-G02A

Art. Nr.: 24035410-G02A

Function: 4 groups on/off and dimmable with respective arrow keys
Menu bar: 4 scenes, on/off

-G03A

Art. Nr.: 24035410-G03A

Function:
1 brightness slider,
1 tunable white slider
Menu bar: 4 scenes, on/off

-G04A

Art. Nr.: 24035410-G04A

Function:
4 groups on/off,
1 brightness slider,
1 tunable white slider
Menu bar: 4 scenes, on/off

-G05A

Art. Nr.: 24035410-G05A

Function: 4 groups on/off and dimmable with respective arrow keys, 1 tunable-white slider
Menu bar: 4 scenes, on/off

-G06A

Art. Nr.: 24035410-G06A

Function:
1 brightness slider,
1 RGB colour slider
Menu bar:
4 scenes, on/off

-G07A

Art. Nr.: 24035410-G07A

Function:
4 groups on/off,
1 brightness slider,
1 RGB colour slider
Menu bar: 4 scenes, on/off

-G08A

Art. Nr.: 24035410-G08A

Function: fan, blinds, 2 groups dimmed separately with arrow keys, 1 tunable-white slider
Menu bar: 4 scenes, on/off

-G09A

Art. Nr.: 24035410-G06A

Function:
1 brightness slider,
1 RGBW colour+white slider
Menu bar: 4 scenes, on/off

Product types

Art. Nr.: 24035410-G01A

DALI-2 Touchpanel with Layout: dimming, 4 scenes
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G01A

DALI-2 Touchpanel with DALI PS (70mA), Layout: dimming, 4 scenes
– open datasheet

Add to request
Art. Nr.: 24035410-G02A

DALI-2 Touchpanel with Layout: dimming buttons, 4 scenes, 4 groups
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G02A

DALI-2 Touchpanel with DALI PS (70mA), Layout: dimming buttons, 4 scenes, 4 groups
– open datasheet

Add to request
Art. Nr.: 24035410-G03A

DALI-2 Touchpanel with Layout: dimming, 4 scenes, Tunable White
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G03A

DALI-2 Touchpanel with DALI PS (70mA), Layout: dimming, 4 scenes, Tunable White
– open datasheet

Add to request
Art. Nr.: 24035410-G04A

DALI-2 Touchpanel with Layout: dimming, 4 scenes, Tunable White, 4 groups
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G04A

DALI-2 Touchpanel with DALI PS (70mA), Layout: dimming, 4 scenes, Tunable White, 4 groups
– open datasheet

Add to request
Art. Nr.: 24035410-G05A

DALI-2 Touchpanel with Layout: dimming buttons, 4 scenes,Tunable White, 4 groups
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G05A

DALI-2 Touchpanel with DALI PS (70mA), Layout: dimming buttons, 4 scenes,Tunable White, 4 groups
– open datasheet

Add to request
Art. Nr.: 24035410-G06A

DALI-2 Touchpanel with Layout: dimming, 4 scenes, RGB colour
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G06A

DALI-2 Touchpanel with DALI PS (70mA), Layout: dimming, 4 scenes, RGB colour
– open datasheet

Add to request
Art. Nr.: 24035410-G07A

DALI-2 Touchpanel with Layout: dimming, 4 scenes, RGB colour, 4 groups
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G07A

DALI-2 Touchpanel with DALI PS (70mA), Layout: dimming, 4 scenes, RGB colour, 4 groups
– open datasheet

Add to request
Art. Nr.: 24035410-G08A

DALI-2 Touchpanel with Layout: Dimming buttons fan, blinds, 2 groups, Tunable White, 4 scenes – open datasheet

Add to request
Art. Nr.: 24035410-PS-G08A

DALI-2 Touchpanel with DALI PS (70mA), Layout: Dimming buttons fan, blinds, 2 groups, Tunable White, 4 scenes – open datasheet

Add to request
Art. Nr.: 24035410-G09A

DALI-2 Touchpanel with Layout: dimming, 4 scenes, RGBW colour+white
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G09A

DALI-2 Touchpanel with DALI PS (70mA), Layout: dimming, 4 scenes, RGBW colour+white
– open datasheet

Add to request
Art. Nr.: 24035410-G000

DALI-2 Touchpanel + glass without print
– open datasheet

Add to request
Art. Nr.: 24035410-PS-G000

DALI-2 Touchpanel with DALI PS (70mA) + glass without print
– open datasheet

Add to request
Art. Nr.: G000

3 additional clear glasses (no layout)

Add to request
Art. Nr.: G01A - Art.Nr.: G09A

3 additional glasses with the same layout (options: G01A – G09A)

Add to request
Art. Nr.: GMIX5

5 additional glasses with different layouts (options: G01A – G09A)

Add to request

Specifications

Technical Data
operational temperature
-20°C bis +45°C
protection class housing / terminals
IP40 / IP20
connection wire cross section
max. 1.5mm²
mounting
on back box
Function
device type
multifunctional control module
multimaster capable
yes
configurable via DALI Cockpit
yes
Electrical Data
supply
from DALI bus
typical current consumption DALI (16,5V)
2 mA
output type
DALI, DALI-2, Multimaster, supply
Dimensions
length
87,7mm
width
87,7mm
height
16,5mm
material
touch-interface: glass, frame: plastic white (other colors available on request)

Downloads & Links

Links

DALI-2 Touchpanel - DALI-2 certification
Configurator for DALI-2 Touchpanel user interface

Downloads

Datasheet - D0092 DALI-2 Touchpanel (PDF - 2,625.19 kB)
Configuration - data of all standard layouts for DALI Cockpit Software (ZIP - 3,068.81 kB)
Accessories - Overview of all DALI-2 Touchpanel user interfaces (PDF - 981.80 kB)
Design - information for custom user interfaces (PDF - 411.77 kB)
3D file - DALI-2 Touchpanel in stp format (ZIP - 148.70 kB)
Design - template for custom user interfaces (ZIP - 3,604.91 kB)
CE – DALI-2 Touchpanel (PDF - 76.03 kB)
UKCA – DALI-2 Touchpanel (PDF - 85.27 kB)
Configuration - Cockpit Guide for Custom Layouts (PDF - 1,869.86 kB)
