DALI CS PS 20mA

Compact DALI motion sensor with integrated light sensor. The module can be used as a control unit for a DALI system or integrated in a building management system as simple sensor unit. The module is suitable for various applications such as offices, class rooms, corridors or halls. Following settings can be configured: target address, DALI command for on/off, activate/deactivate each sensor, constant light control and hold time. Multiple sensors within one group synchronise automatically. image left side: Art. Nr.: 89453862 / Art. Nr.: 89453862-15 right side: Art. Nr.: 89453862-O

DALI CS PS 20mA

Compact DALI motion sensor with integrated light sensor. The module can be used as a control unit for a DALI system or integrated in a building management system as simple sensor unit. The module is suitable for various applications such as offices, class rooms, corridors or halls. Following settings can be configured: target address, DALI command for on/off, activate/deactivate each sensor, constant light control and hold time. Multiple sensors within one group synchronise automatically. image left side: Art. Nr.: 89453862 / Art. Nr.: 89453862-15 right side: Art. Nr.: 89453862-O

Product types

Art. Nr.: 89453862

DALI motion sensor 12m, constant light control, separate unit for sensor and controller, 20mA DALI power supply, luminaire build in – open datasheet

Add to request
Art. Nr.: 89453862-15

DALI motion sensor 15m / max 12m mounting height, constant light control, separate unit for sensor and controller, 20mA DALI power supply, luminaire build in
– open datasheet

Add to request
Art. Nr.: 89453862-O

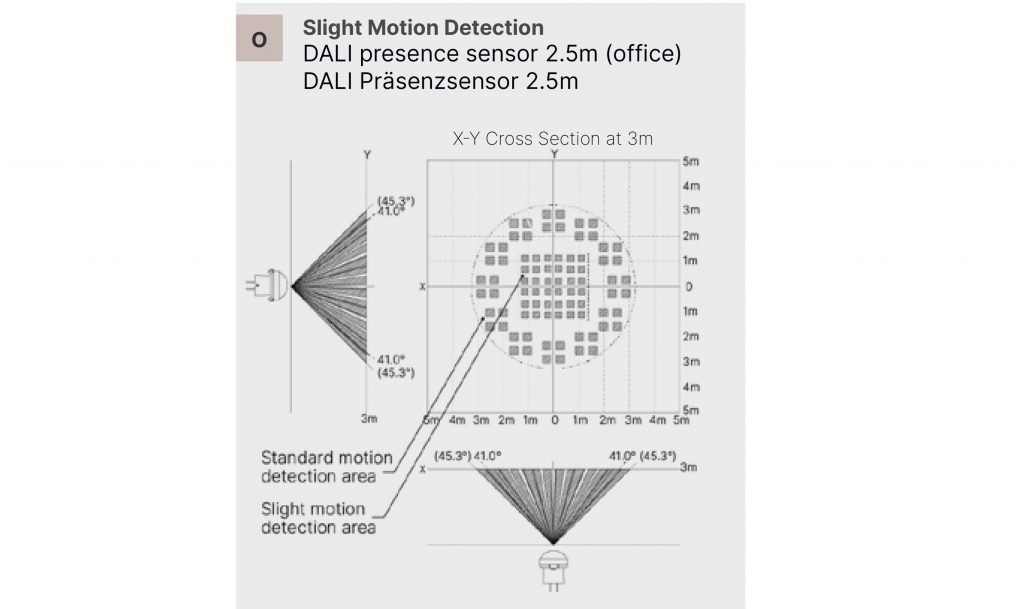

DALI presence sensor 2.5m (office), constant light control, separate unit for sensor and controller, 20mA DALI power supply, luminaire build in – open datasheet

Add to request

Specifications

Technical Data
ambient temperature
-20°C to +70°C
protection class
IP20
connection wire cross section
max. 1.5mm²
mounting
luminaire installation
Function
device type
sensor
constant lighting control
yes
multi-master capable
yes
configurable via DALI Cockpit
yes
motion detection
Ja
Electrical Data
supply
aus DALI Bus oder 230V AC
input/output
DALI
current consumption
without mains: 3.5mA, with 230V AC: up to 20mA
Principle
PIR (passive Infrared)
Sensor 89453862
detection range: max. 12m, 92 zones _ max. mounting height: 8m _ field: horizontal +-51° vertikal +-46°;
Sensor 89453862-15
detection range: max. 15m, 128 zones _ max. mounting height: 12m _ field: horizontal +-34,5° vertikal +-34,5°;
Sensor 89453862-O
detection range: max. 2,3m/3m, 16/48 zones _ max. mounting height: 3m _ fiel: horizontal +-44/90° vertikal +-44/90°;
min. temperature difference
Target/environment: > 4°C
Dimensions
Ceiling housing (length, width, height)
120mm, 30mm, 21mm
Sensor 89453862 (length, width, height)
22mm, 20,5mm, 24mm
Sensor 89453862-15 (length, width, height)
22mm, 20,5mm, 24mm
Sensor 89453862-O (length, width, height)
28mm, 28mm, 21mm

Downloads & Links

Downloads

Datasheet - D0021 DALI CS (PDF - 1,555.19 kB)
CE – DALI CS PS 20mA (PDF - 409.11 kB)
