DALI ROT

DALI ROT is a rotary knob basis to control the light level of DALI luminaires. Versions for Tunable White or RGB-capable luminaires are also available. The device was developed to fit the rotary covers and knobs of most manufacturers and to enable their integration in the DALI system.

DALI logo-01

DALI ROT

DALI ROT is a rotary knob basis to control the light level of DALI luminaires. Versions for Tunable White or RGB-capable luminaires are also available. The device was developed to fit the rotary covers and knobs of most manufacturers and to enable their integration in the DALI system.

DALI logo-01

Product types

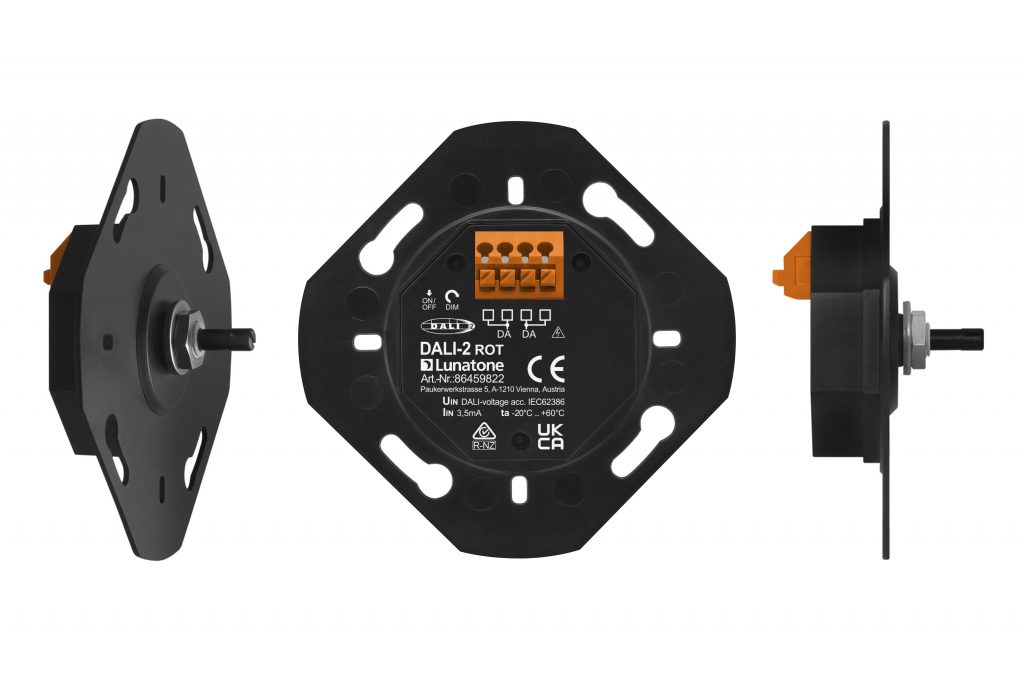

Art. Nr.: 86459822

DALI ROT – open Datasheet

Add to request

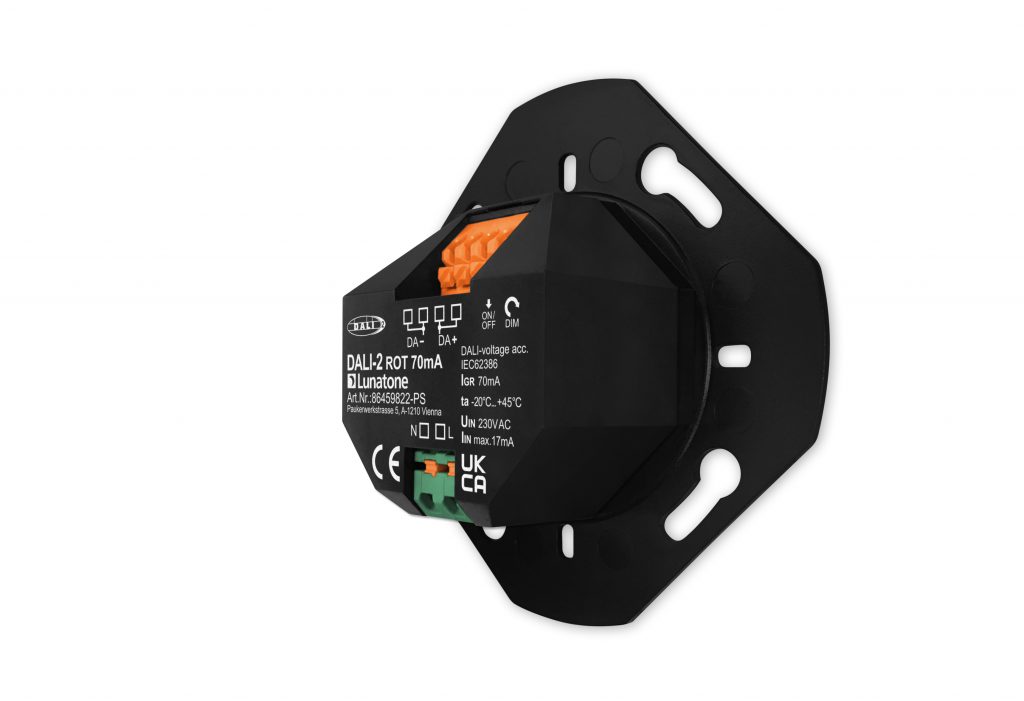

Art. Nr.: 86459822-PS

DALI ROT with DALI Bus Power Supply 70mA – open Datasheet

Add to request

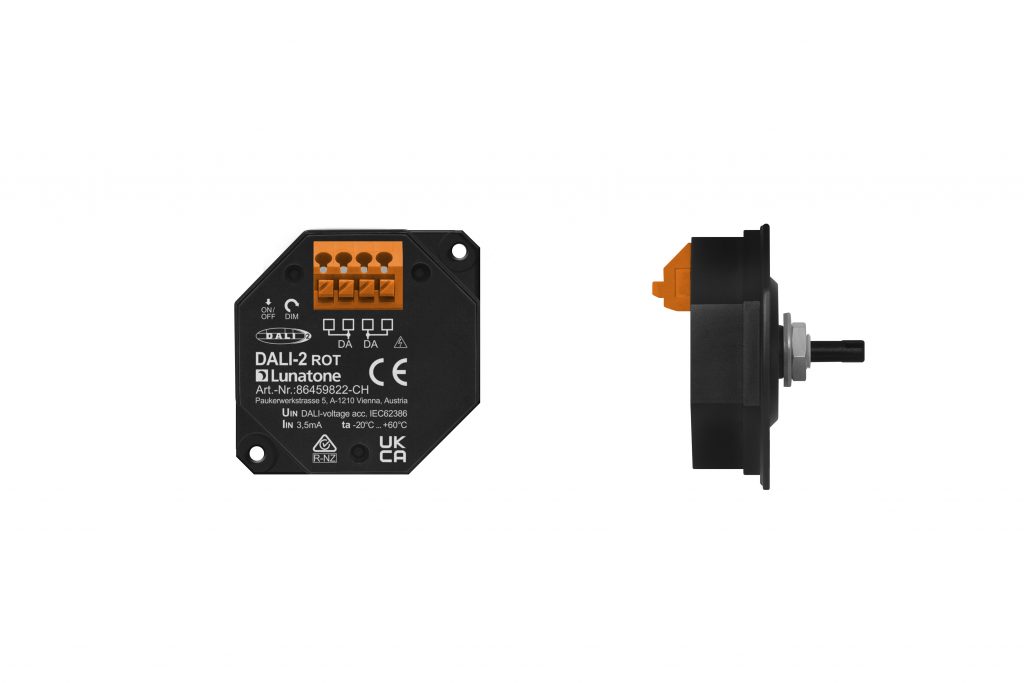

Art. Nr.: 86459822-CH

DALI ROT (CH) – open Datasheet

Add to request

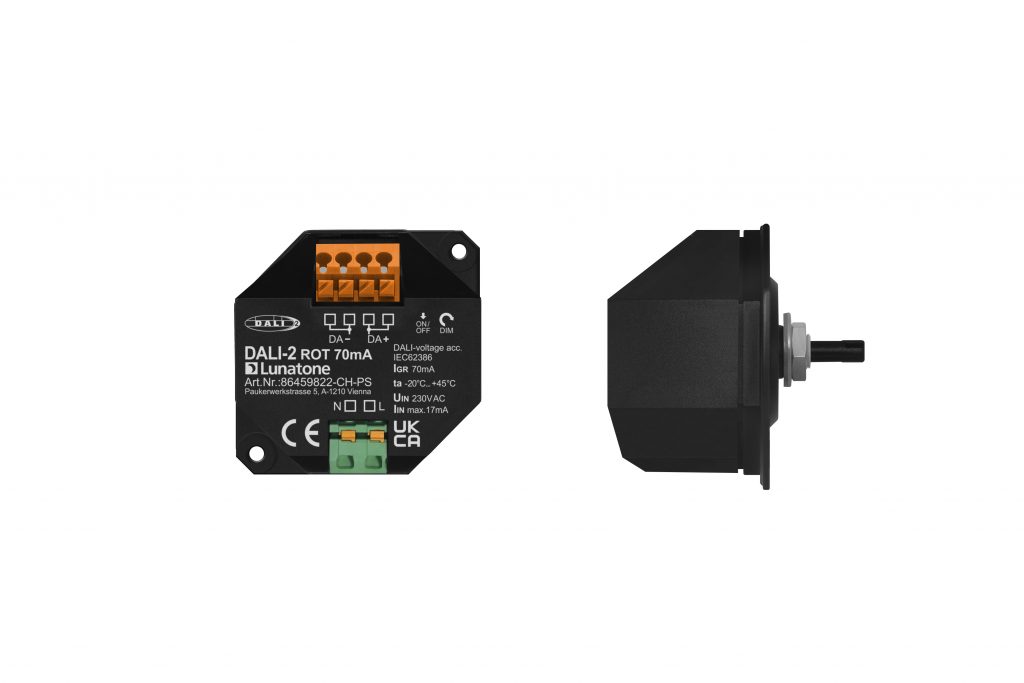

Art. Nr.: 86459822-CH-PS

DALI ROT (CH) with DALI Bus Power Supply 70mA – open Datasheet

Add to request
Art. Nr.: 86459822-TW

DALI ROT Tuneable White – open Datasheet

Add to request
Art. Nr.: 86459822-TW-PS

DALI ROT Tuneable White with DALI Bus Power Supply 70mA – open Datasheet

Add to request
Art. Nr.: 86459822-TW-CH

DALI ROT Tunable White (CH) – open Datasheet

Add to request
Art. Nr.: 86459822-TW-CH-PS

DALI ROTTuneable White (CH) with DALI Bus Power Supply 70mA – open Datasheet

Add to request
Art. Nr.: 86459822-RGB

DALI ROT RGB – open Datasheet

Add to request
Art. Nr.: 86459822-RGB-PS

DALI ROT RGB with DALI Bus Power Supply 70mA – open Datasheet

Add to request
Art. Nr.: 86459822-RGB-CH

DALI ROT RGB (CH) – open Datasheet

Add to request
Art. Nr.: 86459822-RGB-CH-PS

DALI ROT RGB (CH) with DALI Bus Power Supply 70mA – open Datasheet

Add to request
Art. Nr.: 86459822-RGBW

DALI ROT RGBW – open Datasheet

Add to request
Art. Nr.: 86459822-RGBW-PS

DALI ROT RGBW with DALI Bus Power Supply 70mA – open Datasheet

Add to request
Art. Nr.: 86459822-RGBW-CH

DALI ROT RGBW (CH) – open Datasheet

Add to request
Art. Nr.: 86459822-RGBW-CH-PS

DALI ROT RGBW (CH) with DALI Bus Power Supply 70mA – open Datasheet

Add to request
Art. Nr.: 86459822-Z01

cover and rotary knob, alpine white, Jung Series A – Info

Add to request
Art. Nr.: 86459822-Z02

cover and rotary knob, black, Jung Series A – Info

Add to request
Art. Nr.: 86459822-Z03

Adapter 6mm – Info

Add to request
Art. Nr.: 86459822-Z04

cover and rotary knob, white (RAL9016) – Info

Add to request
Art. Nr.: 86459822-Z05

cover and rotary knob, black – Info

Add to request

Specifications

Technical Data
ambient temperature
-20°C to +75°C
protection class
IP20
connection wire cross section
max. 1.5mm²
mounting
back box
Function
device type
control device
power-on behaviour
programmable
ROT
switch/dim
ROT TW
switching / dimming + changing color temperature
ROT RGB
switching / dimming + change color
multi-master capable
yes
Electrical Data
supply
from DALI bus
control input
knob with integrated tactile function
current consumption
3.5mA (DALI)
output
DALI
configurable via DALI Cockpit
yes
Dimensions
length
70mm
width
70mm
height
45mm
diameter axis
4mm (adapter for 6mm on request)

Downloads & Links

Downloads

Datasheet - D0071 DALI ROT (PDF - 954.25 kB)
CE – DALI ROT (Art.Nr. 86459822, Art.Nr. 86459822-xxx) (PDF - 414.25 kB)
DALI ROT Accessory (PDF - 131.79 kB)
DALI ROT - 3D drawings in stp format (ZIP - 490.67 kB)
