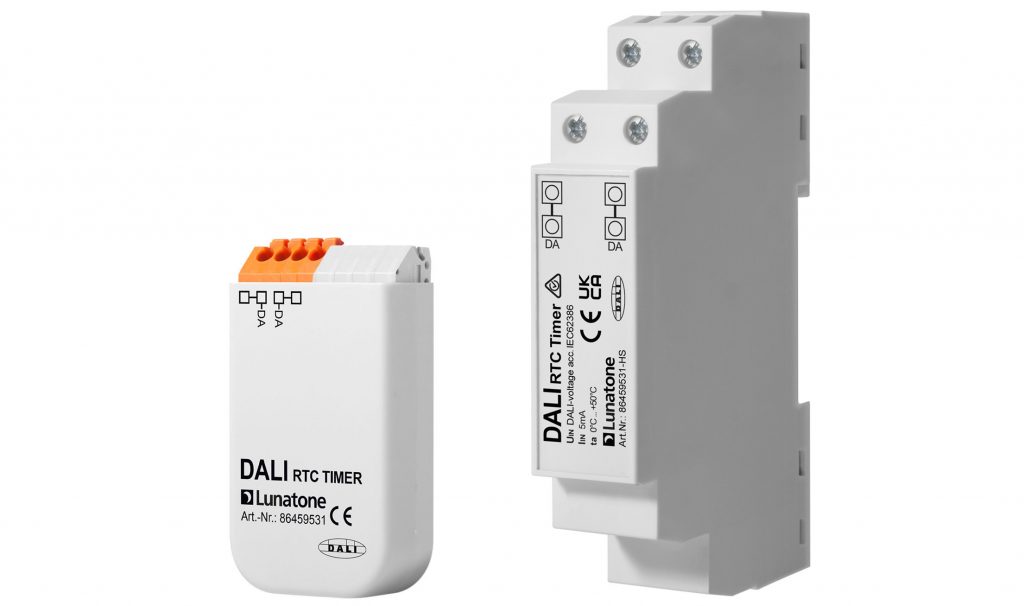

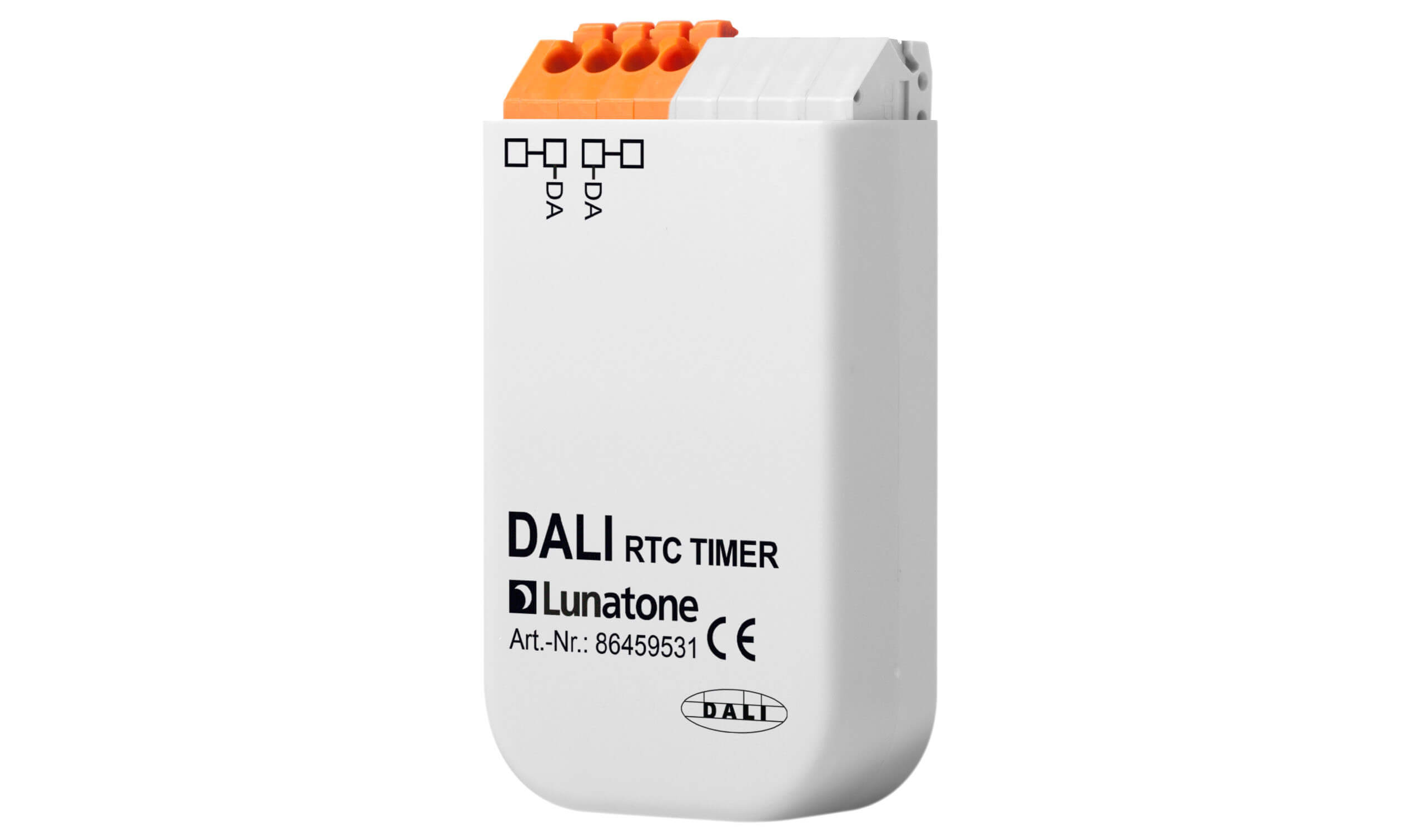

DALI RTC Timer

The DALI RTC Timer module functions as a timer for DALI commands with quartz precision. Weekday based schedules can be specified. The device supports up to 28 entries, each consisting of a specific time, weekday and DALI command. Housing suitable for DIN rail mounting.

DALI RTC Timer

The DALI RTC Timer module functions as a timer for DALI commands with quartz precision. Weekday based schedules can be specified. The device supports up to 28 entries, each consisting of a specific time, weekday and DALI command. Housing suitable for DIN rail mounting.

Product types

Art. Nr.: 86459531-HS

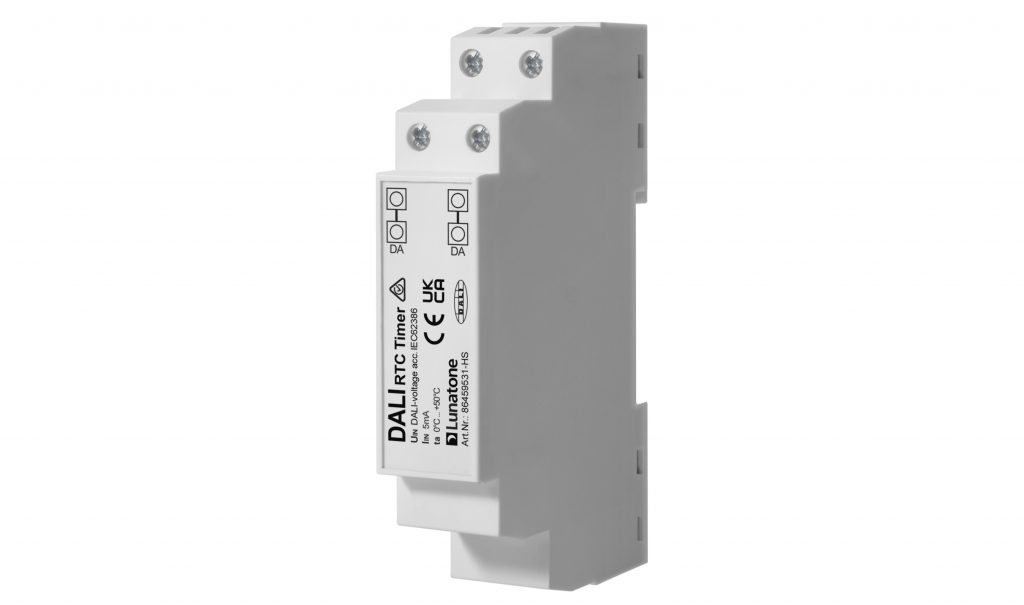

DALI RTC Timer DIN Rail- open datasheet

Add to request

Specifications

Technical Data
ambient temperature
0°C to +50°C
protection class
IP20
connection wire cross section
~ 1.5mm²
mounting
DIN Rail
Functions
device type
control device
timer
up to 28 entries programmable
Electrical Data
supply
from DALI bus
current consumption
5mA (DALI)
input
DALI
output
DALI
RTC
quartz accuracy
Dimensions
86459531-HS (length, width, height)
98 x 17,5 x 56mm
colour
grey

Downloads & Links

Downloads

Datasheet - D0044 DALI RTC Timer (PDF - 399.07 kB)
CE – DALI RTC Art. Nr. 86459531 (PDF - 402.41 kB)
